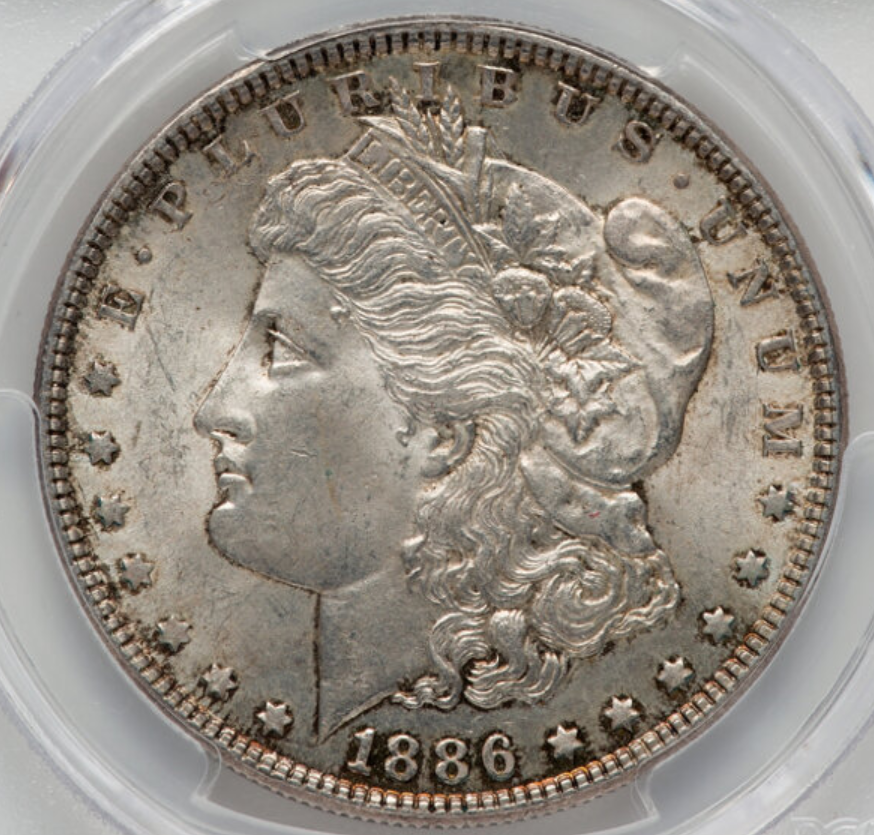

The VAM-20 is classified as a Hot 50 Morgan dollar variety, meaning it ranks among the fifty most avidly collected die varieties in the entire Morgan series. The dramatic doubling originates from the date punch being applied twice to the working die at a slightly offset position, leaving residual impressions of the original '1' and '6' digits beneath the primary numerals.

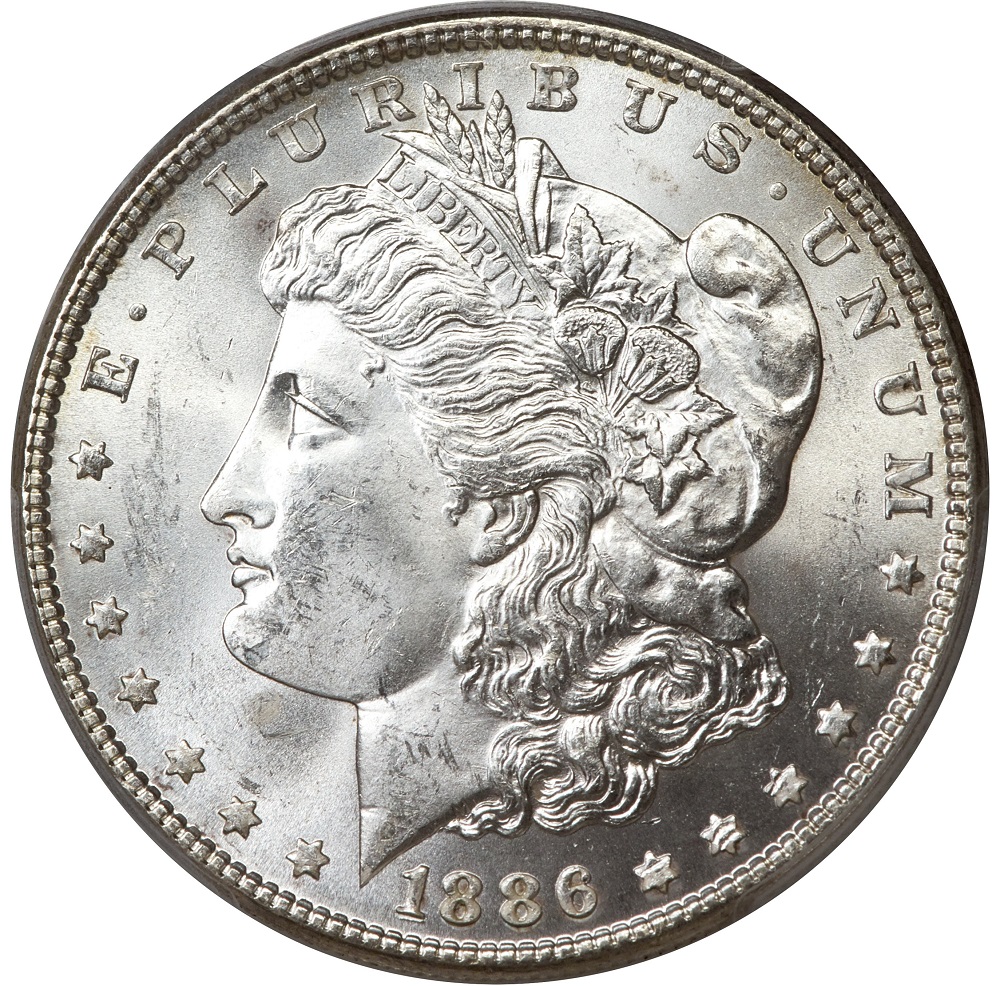

To identify VAM-20, examine the date under a 5× to 10× loupe. Look beneath the base of the primary '1' for a secondary serif or stem protruding downward into the field. Inside the lower loop of the '6', a curved spur from the secondary punch is clearly distinguishable from the smooth interior of a normal digit. Both diagnostics must be present for a confident attribution.
Collector demand for VAM-20 is driven by its dramatic visual impact — the repunching is among the most obvious on any Philadelphia Morgan dollar — and its Hot 50 designation, which guarantees liquidity at auction. Documented auction results include an AU-58 selling for approximately $840, an MS-62 for around $900, and an MS-64 reaching approximately $1,980. In worn grades, examples trade at a modest premium over regular coins, typically in the $400–$500 range; higher grades see exponential jumps.
The 1886-O is a fascinating numismatic anomaly: over 10.7 million were struck, yet the coin ranks among the most conditionally rare in the Morgan series in Mint State. New Orleans Mint coins from this era were produced under substandard conditions — weak die alignment, inferior planchet preparation, and poor quality control all contributed to coins that were weakly struck and heavily bag-marked from the moment they left the press.
The tell-tale signs of the 1886-O's condition rarity are a typically weak strike showing flat hair detail above Liberty's ear and indistinct breast feathers on the eagle's reverse. The 'O' mint mark is found directly above 'DO' in 'DOLLAR' on the reverse. Most surviving Mint State examples grade MS-60 to MS-63 with poor luster and heavy contact marks; a true MS-65 is genuinely elusive and commands a price that shocks collectors unfamiliar with the date.
According to Greysheet pricing, the 1886-O in Mint State spans from roughly $95 for low-grade MS examples to $300,000+ for top-tier examples, with DMPL specimens reaching into seven figures. The 1886-O VAM-1A 'Clashed E' (Top 100) adds further premium — the letter 'E' from LIBERTY was impressed into the reverse die and is visible below the eagle's tail feathers. This clashed variety commands $85–$900+ depending on grade, per GreatCollections auction data.

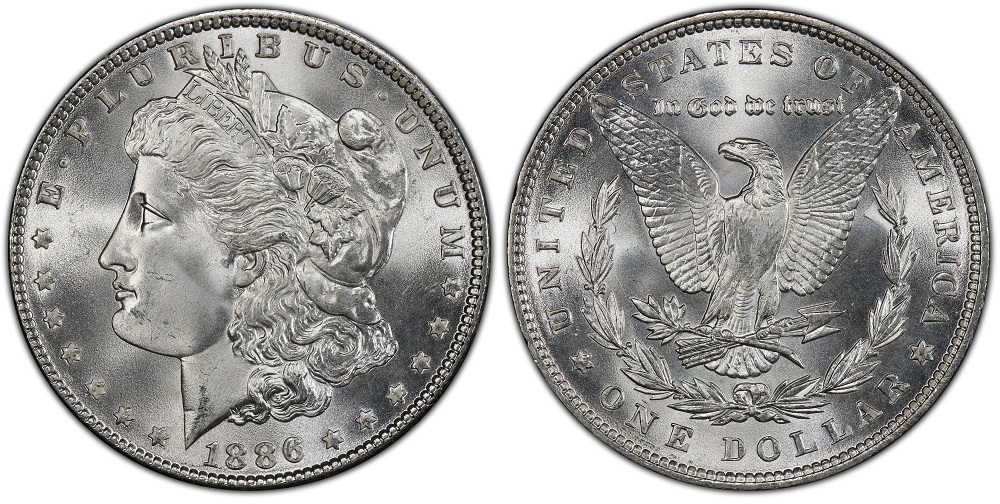

The VAM-1A is designated a Top 100 Morgan dollar variety, placing it among the one hundred most sought-after die varieties in the entire 1878–1921 Morgan series. The primary diagnostic is a die gouge — a scratch in the working die from a metal sliver or tool — that created a raised horizontal line running through the upper loop of the '6' in the date. Secondary diagnostics include slight doubling on Liberty's ear.
Using a 10× loupe, collectors examine the final digit of the date closely. In the upper loop of the '6', a raised linear mark crosses the interior of the loop horizontally. This line is raised on the coin because it was incuse (cut into) on the working die. The die gouge is consistent across all coins struck from this die pair, making it a reliable diagnostic. The slight ear doubling, while harder to see, provides confirmation on well-preserved examples.
The VAM-1A is popular partly because it is accessible — the premium over a regular 1886-P is relatively modest in circulated grades, making it an ideal entry-level Top 100 acquisition. Greysheet prices the VAM-1A at $95–$1,900 in regular MS grades, with PL (Prooflike) specimens reaching $75–$8,250 and DMPL examples pushing into five figures. The combination of Top 100 designation and visual identifiability ensures strong demand at all levels of the market.

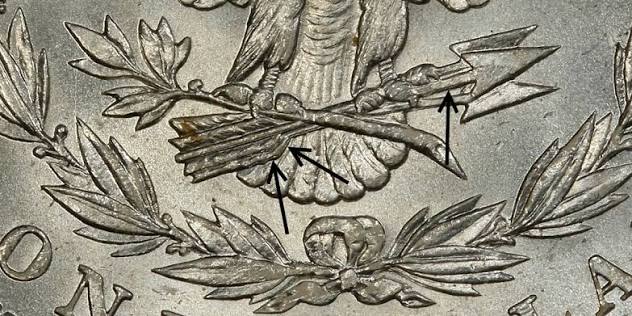

The VAM-17 'Doubled Arrows' is a Top 100 Morgan dollar variety found on the 1886 Philadelphia issue. The doubling originates from the hub being applied twice to the working die at a slightly offset position, impressing the arrowhead design elements twice onto the die. The resulting doubled image was then struck onto all coins produced from that die pair, leaving a consistent diagnostic on every example.
Identification requires examining the reverse of the coin, specifically the cluster of arrows held in the eagle's left talon. Under a 5× to 10× loupe, distinct doubling appears on the arrowhead edges — the pointed tips of the arrowheads show secondary lines or a doubled outline running parallel to the primary edge. This doubling is most visible on the arrowheads farthest from the central arrow shaft. The variety also appears in Prooflike and Deep Mirror Prooflike surface designations, which significantly increase value.
Greysheet prices the VAM-17 in standard MS grades at $105–$2,050, with PL examples ranging $285–$7,750 and DMPL coins reaching $235–$17,000. The DMPL premium on this variety is substantial, as the mirror-like fields amplify the doubled arrow detail dramatically under light. Recent NGC MS-64 examples have been offered in the $179–$184 range in the standard business strike market, making this an affordable Top 100 entry point for collectors willing to look carefully at the reverse.
The VAM-21 is a fascinating Top 100 variety caused by a misplaced date punch — a digit from the date logotype was accidentally impressed into an incorrect location on the reverse working die before the die was fully prepared. Specifically, the digit '8' was punched into the field area below the 'M' in 'UNUM' on the reverse ribbon, creating a raised diagonal line or spur through the base of the letter. This type of production accident is catalogued by CONECA and PCGS as a Misplaced Date (MPD) variety.
To identify VAM-21, examine the reverse ribbon inscription 'E PLURIBUS UNUM' under a 10× loupe. The letter 'M' in 'UNUM' should show a small raised line or notch at its base, protruding into the field. This raised anomaly is inconsistent with normal die engraving and indicates the misplaced digit punch. Unlike the date doublings of VAM-20 or the die gouge of VAM-1A, this variety requires examining the reverse rather than the obverse date area.
The VAM-21 is among the more affordable Top 100 Morgan varieties, trading at $65–$350 depending on grade and surface quality. Its appeal lies in the unexpected location of its diagnostic feature — on the reverse ribbon rather than the obverse date — which surprises even experienced collectors who know the date well. The Prooflike and DMPL surface variants carry larger premiums: Greysheet cites PL examples at $75–$1,500 and DMPL at $215–$5,250, a significant step up from business strikes in comparable grades.
